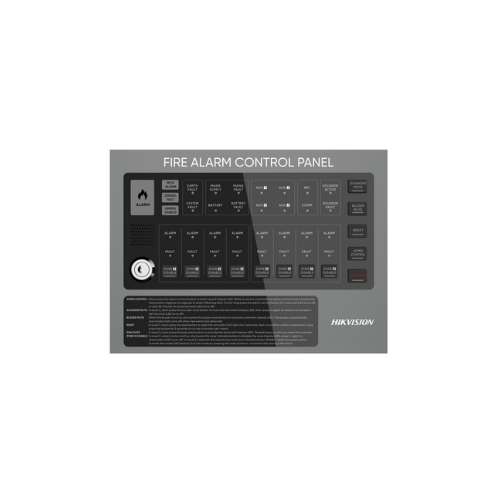

Conventional Fire Alarm Control Panel - 8 zones

Brand: HIKVISION

Maximum 8 zone 256 nodes loading capacity.
Rich interface design (I/O, alarm bell, RS485, etc.)
Ultra-slim cabinet design with hidden hinges, supporting wall mounting and built-in installation, stylish and attractive.
Exclusive flame alarm light, paired with an 85dB high-tone buzzer, offering a refreshing audio-visual alert experience.
Easy of use: The alarm is displayed in English, which is intuitive and clear, and the signal strength is indicated, which is easy to install.
Supports manual alarm, automatic warning, and multi-level management modes for automatic alarms, easily handling various emergencies.
The box comes with built-in multi-dimensional debugging functions, making the status visible and maintenance convenient.

Request a Quote

General
Dimension (L × W × H)W 300 mm × H 220 mm × D 80 mm
4.9 kg (with 2 batteries and package)
Working Temperature-10 ℃ ~ 55 ℃
Working Humidity5%～95% (non-condensing)
Shell MaterialMetal
Power
Main power: 110 V ~ 240V / 50 Hz ~ 60 Hz
Backup power: 2200 mA*h / 12 V (2 pcs)
Rated Capacity8 zones, up to 32 conventional devices in one zone
