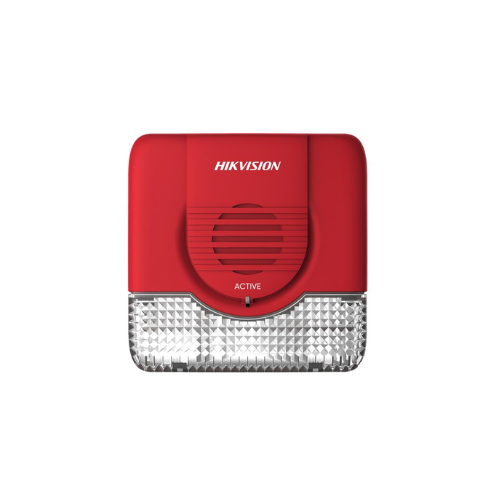

HIKVISION Addressable Horn/Strobe

HIKVISION Addressable Horn/Strobe

Brand: HIKVISION

Audible and Visual Alarm

Model: HK-SG-8015

Built-in high-performance, ultra-low-power microprocessor for fast processing and reliable operation.
Non-polarized two-wire bus design simplifies wiring and prevents device faults caused by incorrect wiring.
Separate base design for simple and convenient installation.
Warning light cover features a diamond-textured design, ensuring strong visual signals are emitted from all angles when activated.

Request a Quote

Specifications:

Certifications

Complies with GB 26851-2011 – Fire Audible and/or Visual Alarm Devices

Key Features

Sound Pressure Level: 75 dB–100 dB

Bus Parameters

Wiring: RVS 2 × 1.5 mm²
Maximum Transmission Distance: 1,000 m

General Specifications

Device Weight: 110 g
Indicator: 1 LED indicator
Address Range: 1–250
Wiring Type: Two-wire
Flash Frequency: 1 Hz–1.5 Hz
Tone Variation Cycle: 4 s–5 s
Standby Current: ≤500 μA
Rated Operating Voltage: 24 V (Bus)
Operating Temperature: −10 °C to 55 °C
Relative Humidity: ≤95%, non-condensing
Alarm Current: ≤5 mA
Product Dimensions (L × W × H): 86 × 86 × 40 mm (with base)
